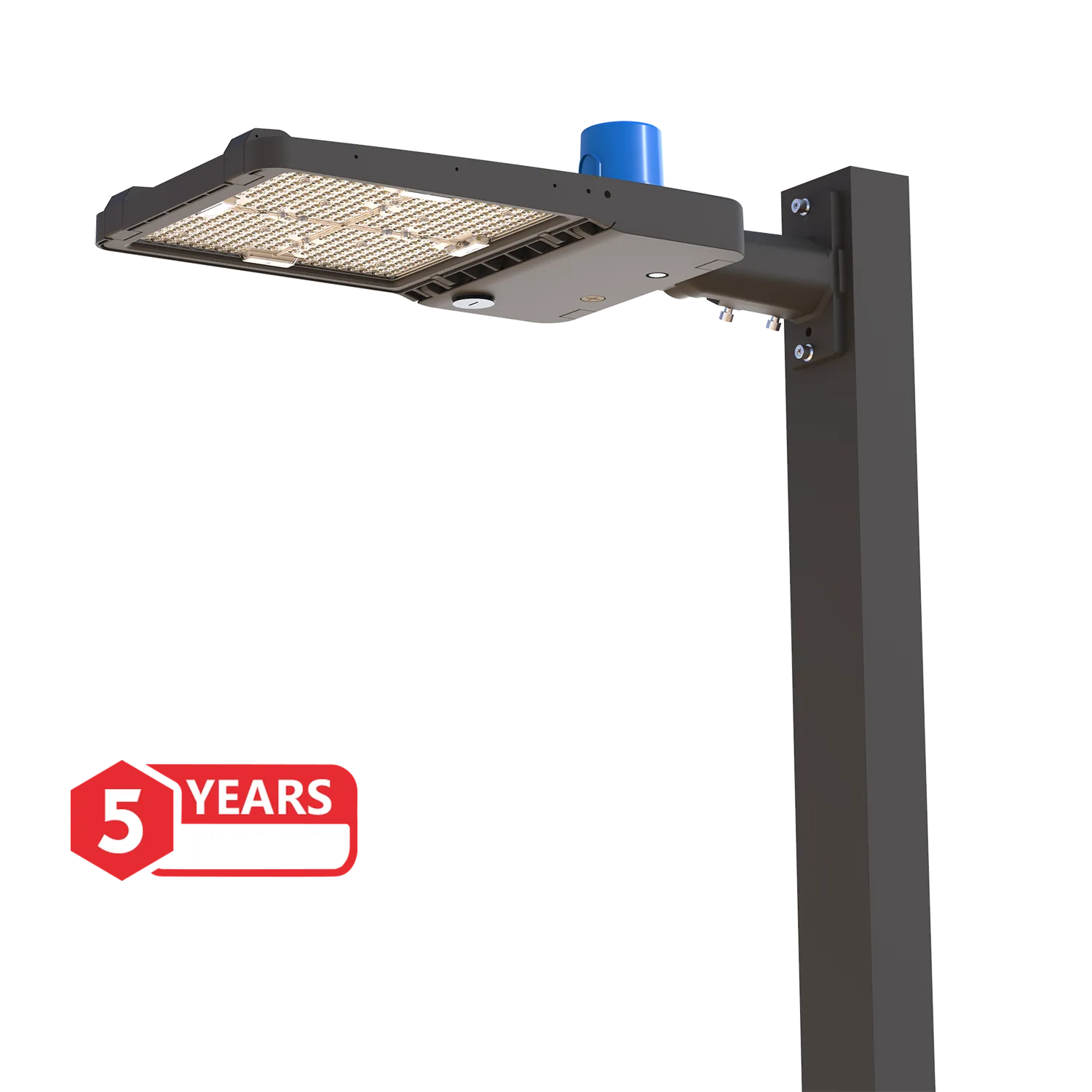

SB06 Smart Area Light Allows Quick Lens Replacement without Tools

SB06 is a smart area light that allows quick lens replacement without tools. This feature is particularly beneficial for distributors as it allows them to reduce inventory pressure and maintain a fit inventory. By being able to easily swap out lenses, distributors can adjust the lighting options based on customer demands without having to stock multiple variations of the entire light fixture. This flexibility can help streamline inventory management and reduce costs associated with excess inventory.

  • ● 3-in-1 CCT Selectable.
  • ● 4-in-1 Wattage Selectable: 100W(50W-65W-80W-100W), 150W(80W-100W-120W-150W), 200W(100W-120W-150W-200W), 240W(120W-150W-200W-240W), 300W(150W-200W-240W-300W), 400W(200W-240W-300W-400W) , 500W(240W-300W-400W-500W).
  • ● Lumen output from 8,000Lm to 80,000Lm.
  • ● 3-in-1 CCT selectable: 3000K-4000K-5000K, 4000K-5000K-5700K.
  • ● Beam angle: T2°, T3°, T4°, T5°, asymmetric.
  • ● IP66 water-proof & IK08.
  • ● 6KV, 10KV, 20KV surge protection optional.
  • ● Operating Temperature: -40°C to +50°C.
  • ● Lifespan L70B50 100,000H@35°C.
  • ● 5 years warranty.
  • ● Certificates CE, UL, DLC, RoHS available.
Contact us
icon

Wattage and CCT Selectable Area Light

SB06 features a 4-in-1 power adjusting and 3-in-1 CCT adjusting. It utilizes the M32 oversized switch space for convenient customer operation.

4-in-1 Power Selectable

50W-500W

3-in-1 CCT Selectable

Standards: 3000K-4000K-5000K Optional: 4000K-5000K-5700K

Conducive to Stocking and Reducing Inventory Risks

Versatility of lenses: The lens can be installed by rotating 90 degrees to the left or right according to specific lighting requirements, making it suitable for special lighting scenarios.

LED Area Light the lens can be rotated 90° to provide new lighting angles
Tool-free quick replacement of lenses.
The lens can be rotated 90° to provide new lighting angles.
LED Area Light Exempted tools quickly open the driver box

Exempted tools quickly open the driver box.
Save Maintenance Costs.

High Light Transmittance Lens

Use a high-transparency lens (Brand TEIJIN 1250Z), with a high light transmittance of up to 90%. Its excellent heat resistance, UV resistance, and impact resistance, allow for prolonged reduction of light loss.

ADC12 and Anti-corrosion Surface Treatment

The luminaire body is made of ADC12 die-cast aluminum, with an outdoor powder-coating surface treatment. Undergone a 500-hour salt spray test, demonstrating excellent corrosion resistance.

Effective Heat Dissipation Management

The heat sink is designed with water outlet holes, enabling the generation of a chimney effect for improved heat dissipation performance. Additionally, the heat sink remains free of water and dust accumulation, ensuring its longevity. With a large illuminated surface, the heat from the light beads is evenly dispersed, resulting in excellent heat dissipation.

Multiple Installation Brackets Available

SF, EA, TR, YK, and 4-in-1 multiple brackets are available to meet different installation environments.

SB06 Series-4-in-1 Multiple Bracket Area Light

4-in-1 Multiple-Bracket

SF

SF

EA

EA

TR

TR

YK

YK

Specifications

Model

  • HD-SB06-100W
  • HD-SB06-150W
  • HD-SB06-200W
  • HD-SB06-240W
  • HD-SB06-300W
  • HD-SB06-400W
  • HD-SB06-500W

Watt Tunable

  • 50W-65W-80W-100W
  • 80W-100W-120W-150W
  • 100W-120W-150W-200W
  • 120W-150W-200W-240W
  • 150W-200W-240W-300W
  • 200W-240W-300W-400W
  • 240W-300W-400W-500W

CCT Tunable

  • 3000K/4000K/5000K/
  • 4000K/5000K/5700K

Lumen Output

  • 8,000lm-16,000lm
  • 12,800lm-24,000lm
  • 16,000lm-32,000lm
  • 19,200lm-38,400lm
  • 24,000lm-48,000lm
  • 32,000lm-64,000lm
  • 38,400lm-80,000lm

Dimming

  • 0-10V Dimming

CRI

  • 70/80

Certifications

  • CE/UL/DLC/RoHS

***Please confirm the information again with our sales before placing an order.
