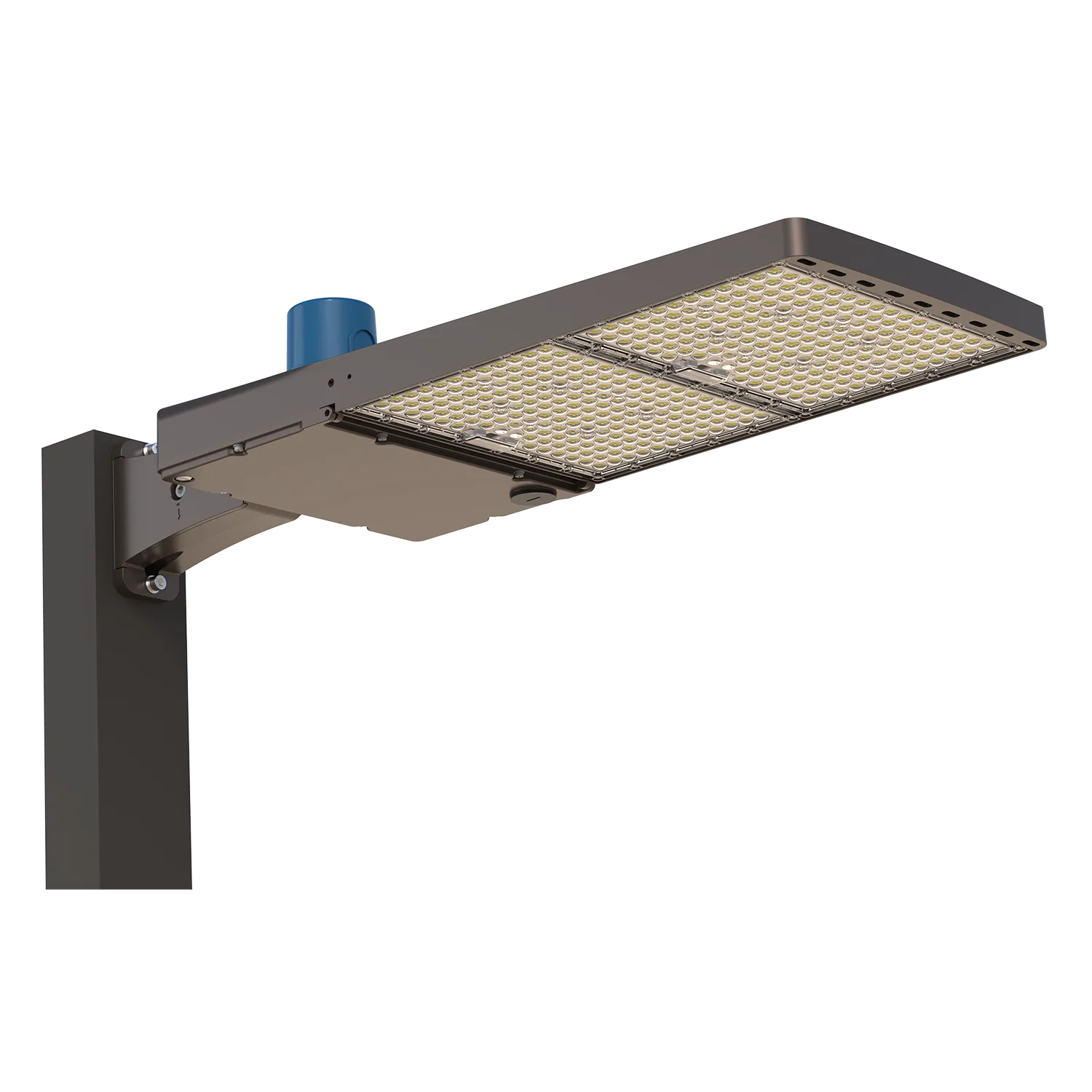

SB05 Cost-Effictive Area Light with Smart Dimming and CCT Adjusting

The SB05 is a cost-effective LED area light with smart dimming and CCT-adjusting capabilities. It features 4-in-1 power and 3-in-1 color temperature adjusting functions. Power ranging from 50W to 500W, the SB05 is suitable for various outdoor lighting applications including parking lots, residential areas, streets, sidewalks, sports fields, campuses, parks, and industrial and commercial areas. The structural design of SB05 prioritizes maintenance convenience. The power box is designed with a rotating structure that stays securely in place when opened, allowing for single-person operation and reducing maintenance costs. The inner power box is designed with a heat sink to efficiently dissipate heat and ensure stable power performance and lifespan. Additionally, the power box is compatible with different brands and sizes of drivers, accommodating diverse customer requirements. Furthermore, the SB05 offers a super-economy light control solution and an optional intelligent light control solution for enhanced lighting control and efficiency.

  • ● Wattage adjustable and color temperature tunable solutions.
  • ● Light efficiency up to 160Lm/W., lumen output from 8,000Lm to 80,000Lm.
  • ● Beam angle Type III-M, Type V-S, Type IV-S.
  • ● IP65 waterproof, IK08 rating, humanized design to save high maintenance cost.
  • ● Stability driver & more solution optional.
  • ● Vents help cool the heat sink & prevent water accumulation.
  • ● Light Control Solution Optional: Cost-effective light control & multi-function light control PIR & Microwave Sensor Optional.
  • ● 5 years warranty.
  • ● Certificates CE, CB, ERP, UL, DLC, RoHS available.
Contact us

Wattage & CCT Adjustable Solutions

4-in-1 Power Tunable

Area Light Chart 1

3-in-1 CCT Tunable

Humanized Design

The power box cover is connected to the lamp body with a rotating-link structure. By loosening two screws, the power box can be easily opened without the cover falling off. This convenient design allows for easier manual maintenance operations, improves safety during maintenance and operation, and helps reduce maintenance costs.

Stability Driver & More Solution

The heat sink design in the power box of the SB05 LED area light series is specifically engineered to ensure the stability of the driver. This design allows for quick and efficient spreading of heat, aiding in heat dissipation. It is compatible with driver brands such as LiFud, Sosen, and DONE, ensuring consistent cooling capacity regardless of the chosen power supply. This provides customers with a range of power options. Additionally, the SB05 LED area light utilizes a no-flicker lightning source, ensuring a comfortable and consistent illumination effect throughout the entire light.

Humanized Design

  • Cost-Effective Light Control: Photocell, 3-PIN
  • Multi-function Light Control: NEMA+Photocell, 3-PIN/5-PIN/7-PIN
NEMA+PHOTOCELL

Vents

The heat sink in the SB05 LED area light series is made using the ADC12 die-casting aluminum process, which conducts heat quickly. The design of the heat sink includes vents and encourages air convection, which aids in cooling the heat sink effectively. Additionally, this design feature helps prevent water accumulation, making it suitable for areas with high rainfall.

Multiple Accessories to Achieve Multiple Installation Methods

Specifications

Model

  • HD-SB05-100W
  • HD-SB05-150W
  • HD-SB05-200W
  • HD-SB05-240W
  • HD-SB05-300W
  • HD-SB05-400W
  • HD-SB05-500W

Watt Tunable

  • 50W-65W-80W-100W
  • 80W-100W-120W-150W
  • 100W-120W-150W-200W
  • 120W-150W-200W-240W
  • 150W-200W-240W-300W
  • 200W-240W-300W-400W
  • 240W-300W-400W-500W

CCT Tunable

  • 3000K/4000K/5000K/
  • 4000K/5000K/5700K

Lumen Output

  • 8,000lm-16,000lm
  • 12,800lm-24,000lm
  • 16,000lm-32,000lm
  • 19,200lm-38,400lm
  • 24,000lm-48,000lm
  • 32,000lm-64,000lm
  • 38,400lm-80,000lm

Dimming

  • 1-10V

CRI

  • 70

Certifications

  • UL/DLC/CB/CE/ERP/RoHS

***Please confirm the information again with our sales before placing an order.
