Flash Power and CCT Tunable Highbay Light
Flash is an excellent intelligent high bay with adjustable power and color temperature. It has two size models with φ280mm and φ320mm. The adjustable power range is 60W- 120W and 120W-240W. Input voltages are 100-277V and 120-347V optional for most countries and regions worldwide. With the Lumileds 2835 beads, the entire light efficiency is up to 160 Lm/W, GLARE value control UGR< 28, effectively helping reduce workers’ visual fatigue. Flash includes an expansion port that makes it easy to screw on standard or Lightcloud Blue-enabled PIR and microwave sensors, which can be configured to adjust brightness and hold time, saving additional energy and costs. A remote is also available for an additional level of control.
- ● Wattage Tunable: 100W/80W/60W, 150W/120W/100W, 200W/150W/120W, 240W/200W/150W
- ● CCT tunable: 3000K/4000K/5000K, 4000K/5000K/5700K
- ● Light efficiency up to 160Lm/W., lumen output from 9,600Lm to 38,400Lm.
- ● Beam angle 60deg and 90deg.
- ● IP65 water-proof, suitable for wet locations

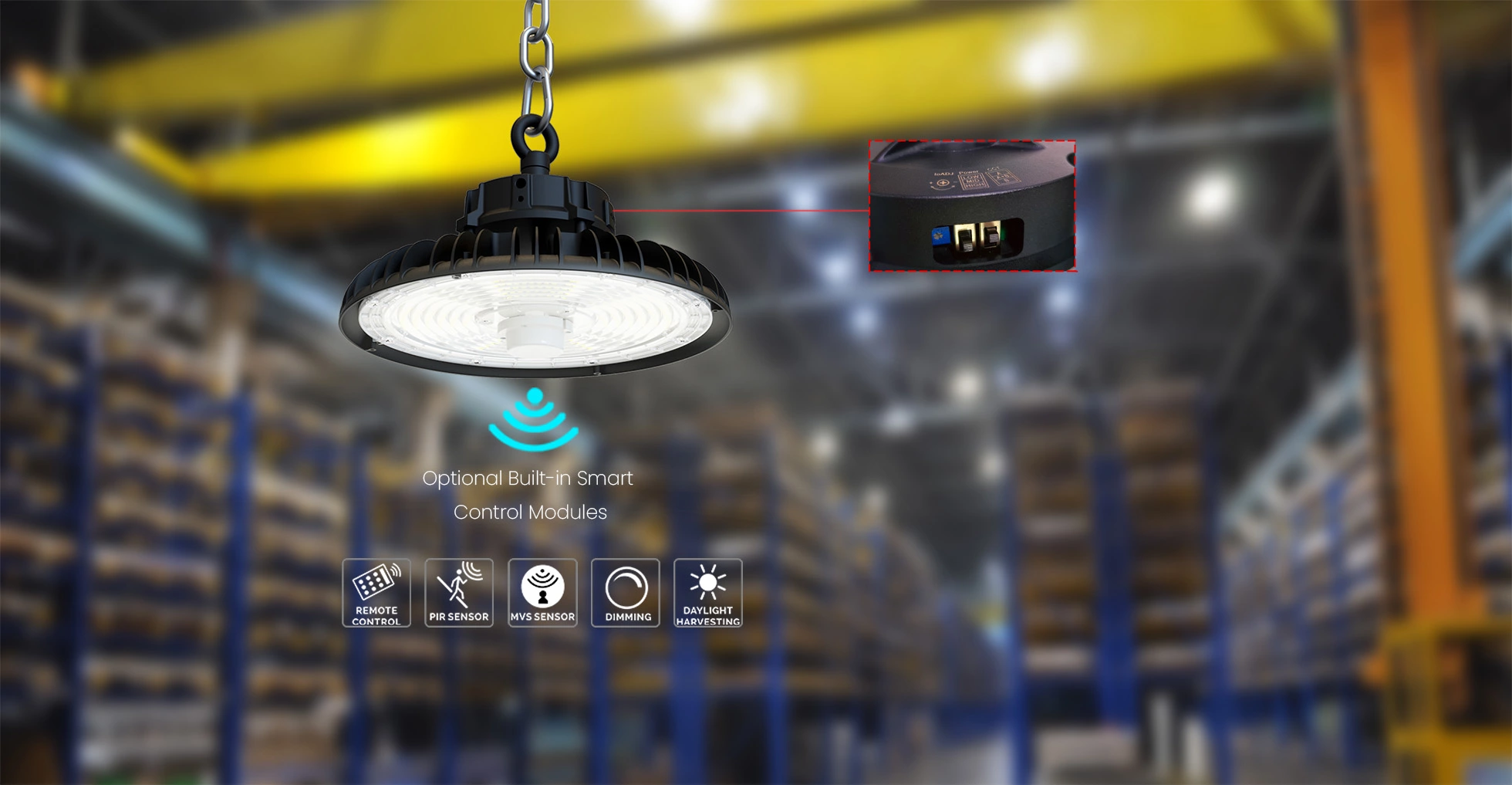

- ● Comes with expansion port for sensors, Intelligent control include 0-10V Dimming, PIR and MVS Sensor kits available
- ● Operating Temperature: -30°C to +50°C.,
- ● 5 years warranty
- ● Certificates CB, CE, ENEC, SAA, UL, DLC5.1, RoHS available.
CCT And Wattage Tunable
Accessories
Aluminum Reflector
Polycarbonate Reflector
Installation Method
Hook Mounting & Bracket Mounting
Specifications
Model
- HD-HB15-100W
- HD-HB15-150W
- HD-HB15-200W
- HD-HB15-240W
Wattage
- 60W/80W/100W
- 80W/100W/150W
- 120W/150W/200W
- 150W/200W/240W
CCT
- 3000K/4000K/5000K
- 4000K/5000K/5700K
Lumen Output
- 9,600lm/16,000lm
- 12,800lm/24,000lm
- 19,200lm/32,000lm
- 24,000lm/38,400lm
Dimming
- 0-10V
CRI
- Ra70
- Ra80
Finish
- Die-casting Aluminum
Certifications
- CB/CE/ENEC/SAA/ DLC5.1/ ETL/RoHS
