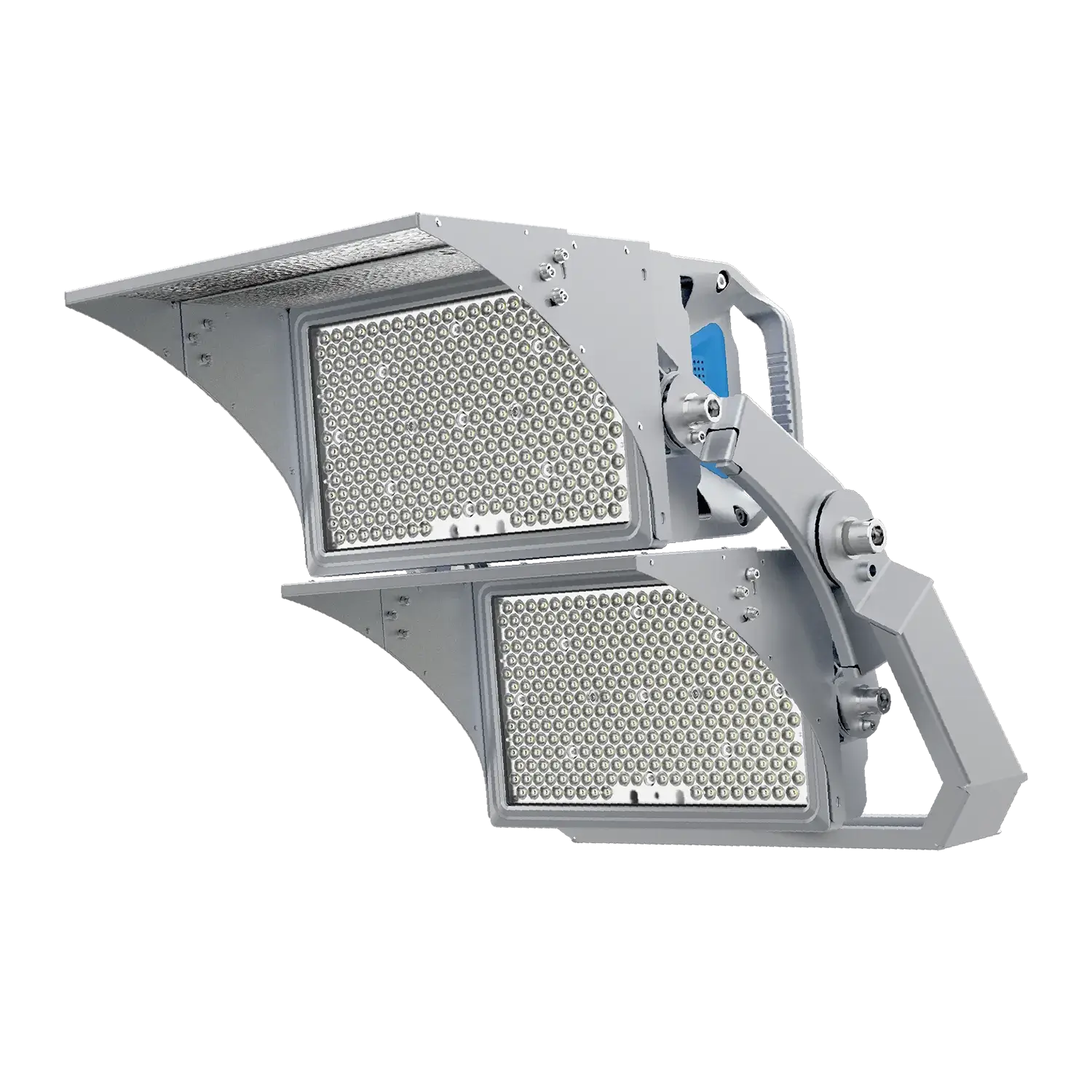

FL03 High-power Stadium Light with Adjustable Visor

FL03 is a high-power modular light with a power coverage of 300-2400W and a light efficiency of 150lm/W. The FL03 is designed with an adjustable angle of 0-35 Β° visor, which has precise control of the areas of light distribution, allowing it to precisely illuminate the specified area. By finely tuning the visor’s angle and position, the lighting can be directed with pinpoint accuracy to highlight specific areas or objects while minimizing light spillage in undesired areas. Also, the visor incorporates an internal prism reflection structure, making uniform illumination, low glare, and optimal utilization of light. The FL03 has a human-friendly structure, such as a non-slip handle which enhances the simplicity and convenience of installation. It caters specifically to workers installing the product at elevated heights.【Typically ranging between 8 to 40 meters】. By incorporating these handles, we not only prioritize worker safety but also streamline installation processes, saving valuable time and reducing labor costs while mitigating associated risks. Driver can be fixed behind the heat sink, and also be flexibly installed in a centralized power box located on the pole. this can reduce frequent maintenance tasks at elevated heights, minimizing potential safety hazards for workers. An external junction box can make the wiring simple and save installation time.

  • ● Wattage: 300W, 400W, 500W, 630W, 800W, 1000W, 1260W, 1600W, 2000W, 2400W.
  • ● Lumen output from 45,000Lm to 360,000Lm.
  • ● Adjustable visor help to precision in lighting areas, and they utilize an internal prism reflection design to optimize light distribution.
  • ● IP68 water-proof when driver built-external & IP66 water-proof when driver built-in.
  • ● Small size and Light weight helps to ensure small wind resistance.
  • ● Life Span L70B50 100,000h@25℃.
  • ● 7 years, isolated (5 years, non-isolated).
  • ● Certificates UL, DLC, CUL, CB, CE, ENEC, SAA, C-Tick, RoHS available.
Contact us

Adjustable Visor Help to Precision in Lighting Areas

The visor can minimize the presence of unwanted spill light, and reduce the effects of residential areas. Adjustable visors have precise control of the areas of light distribution, allowing it precisely illuminates the specified area. By finely tuning the visor’s angle and position, the lighting can be directed with pinpoint accuracy to highlight specific areas or objects while minimizing light spillage in undesired areas. This level of control ensures that the illuminated space receives the ideal amount and direction of light, resulting in enhanced visibility, accentuated architectural features, and a tailored lighting experience for different applications and venues.

When FL03 stadium light without a visor, it will produce 12% of the luminous flux upward light and stray light, resulting in certain light pollution. When the G3 with a visor, stray light and upward light reduced to 2%, with almost no effect for the residential area. When the visor can adjust the angle, the G3 can achieve a precise cut-off effect, and can accurately illuminate the light to the designated area.

Adjustable visor help to precision in lighting areas

Humanized Handle is Kindly for High-Altitude Operations

To enhance the simplicity and convenience of installing the FL03 stadium light, we have implemented a thoughtful design featureβ€”two non-slip handles positioned at the rear of the product. These handles cater specifically to workers installing the product at elevated heights.【typically ranging between 8 to 40 meters】By incorporating these handles, we not only prioritize worker safety but also streamline installation processes, saving valuable time and reducing labor costs while mitigating associated risks.

Small Size and Light Weight Helps to Ensure Small Wind Resistance

The compact and lightweight design of FL03 lighting solutions makes it suitable for high-altitude operations and maintenance. Additionally, the smaller size helps to reduce wind resistance, ensuring the long-term stability of the structures even in severe weather conditions such as gales.

Specifications

Model

  • HD-FL03-300W
  • HD-FL03-400W
  • HD-FL03-500W
  • HD-FL03-630W
  • HD-FL03-800W
  • HD-FL03-1000W
  • HD-FL03-1260W
  • HD-FL03-1600W
  • HD-FL03-2000W
  • HD-FL03-2400W

Wattage

  • 300W
  • 400W
  • 500W
  • 630W
  • 800W
  • 1000W
  • 1260W
  • 1600W
  • 2000W
  • 2400W

CCT

  • 3000K/4000K/5000K/
  • 5700K/6500K/RGB

Lumen Output

  • 45,000lm
  • 60,000lm
  • 75,000lm
  • 94,500lm
  • 120,000lm
  • 150,000lm
  • 189,000lm
  • 240,000lm
  • 300,000lm
  • 360,000lm

Dimming

  • 0-10V/1-10V/DALI

CRI

  • 70/80/90, TLCI>90

Certifications

  • UL/DLC/CUL/CB/CE/ENEC/
  • SAA/C-Tick/RoHS

***Please confirm the information again with our sales before placing an order.
