G4.5 High-Power Modular Flood Sports Light
The G4.5 flood sports light is a high-power module designed for stadiums. It can provide up to 750W of power with a single module, or up to 1500W with two modules, thanks to the 3535 LED chips. G4.5 stadium light is lightweight in design. 1500w just 21.5 kg, it is 30- 40% lighter than other stadium lights with similar power in the market. This makes installation and maintenance easier without sacrificing performance. The G4.5 has a mounting bracket that allows for a 100mm horizontal adjustment, and the entire light can rotate at a wide angle of 0-270°, providing accurate and even lighting for the entire field. This enables precise positioning and even distribution of light across the entire field, making it ideal for professional playing fields. When mounted on tall masts, this adjustability ensures that the lights can be precisely tailored to each area and corner of the pitch, enhancing lighting quality and the overall visual experience for athletes and spectators. Additionally, the G4.5’s lens and glass double protection system protect the light source, reduce light attenuation, and prevent dust accumulation, making it well-suited for environments with wind and sand.
- ● Wattage: 700W, 1400W(3535)/ 750W, 1500W(3030)
- ● Lumen output from 94,500Lm to 195,000Lm.
- ● 1500w just ONLY 21.5 kg, Lightweight and easy to disassemble
- ● Horizontal fine-tuning help to provide accurate and even lighting
- ● No screws on the front of the lights
- ● Die-cast AL mounting bracket more strength and durability
- ● Opto-electrical separation and user-friendly structural design, to reduce costs
- ● Self-locking connector for DC wires, plug-and-play.
- ● Beam angle: Symmetric & Asymmetric light distribution
- ● IP66 water-proof & 10KV surge protection
- ● 7 years warranty, Life Span L70B50 100,000h@25℃
1500W Just Only 21.5 KG
30-40% lighter than other stadium lights, it makes installation and maintenance easier without sacrificing performance.
Lens + Glass Double Protection
The G4.5 features a luminous surface that incorporates a lens and glass double protection system. The lens ensures better light distribution control, while the glass protects the lens from environmental factors, reducing light attenuation and improving the lifespan of the light source. Additionally, the glass surface prevents the accumulation of dust and debris, making it particularly suitable for environments with wind and sand.
Horizontal fine-tuning help to provide accurate and even lighting
The G4.5 mounting bracket is designed with a 100mm horizontal adjustment distance The entire light can rotate at a wide angle of 0-270°, providing accurate and even lighting for the entire field. This is particularly advantageous for professional playing fields. When multiple G4.5 lights are mounted on high masts (15-30m), the horizontal fine-tuning feature allows for precise adjustment of each light to different areas and corners of the pitch. This improves the lighting quality and enhances the visual experience for athletes and spectators.

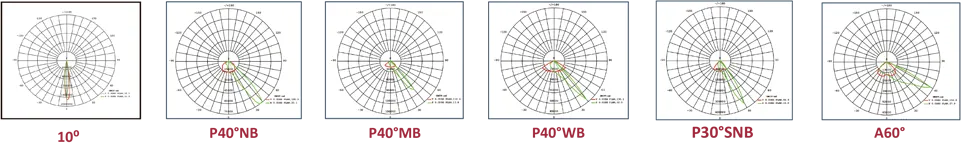

Symmetric & Asymmetric Light Distribution
G4.5 offers both symmetric and asymmetric light distributions, catering to different mounting heights and various sports field layouts. This versatility allows for optimal lighting regardless of the specific requirements of the installation. Whether the field is large or small, with high or low mounting heights, the G4.5 can provide the appropriate light distribution to meet the specific needs of the sports field.

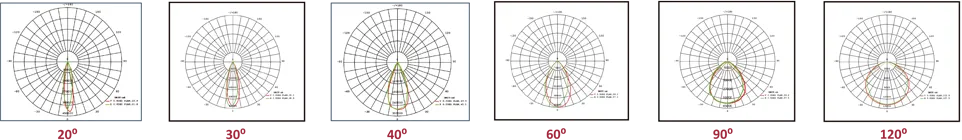

3030 Optional (20°-120°)
3030 Optional (20°-120°)
Specifications
Model
- HD-G4Pro-700W-750W
- HD-G4Pro-1400W-1500W
Wattage
- 700W/750W
- 1400W/1500W
CCT
- 4000K
- 5000K
- 5700K
Lumen Output
- 94,500-97,500lm
- 189,000-195,000lm
Dimming
CRI
- Ra70
- Ra80
- Ra90
- TLCI90
Finish
- Die-casting Aluminum
Certifications
- UL/CE/CB/RoHS
